Diagram
| Target Namespace | http://www.w3.org/XML/1998/namespace |
|---|---|
| Language | en |
| Element and Attribute Namespaces |
|
| Documentation |
About the XML namespaceThis schema document describes the XML namespace, in a form suitable for import by other schema documents. See http://www.w3.org/XML/1998/namespace.html and http://www.w3.org/TR/REC-xml for information about this namespace. Note that local names in this namespace are intended to be defined only by the World Wide Web Consortium or its subgroups. The names currently defined in this namespace are listed below. They should not be used with conflicting semantics by any Working Group, specification, or document instance. See further below in this document for more information about how to refer to this schema document from your own XSD schema documents and about the namespace-versioning policy governing this schema document. Father (in any context at all)denotes Jon Bosak, the chair of the original XML Working Group. This name is reserved by the following decision of the W3C XML Plenary and XML Coordination groups:
About this schema document
This schema defines attributes and an attribute group suitable
for use by schemas wishing to allow To enable this, such a schema must import this schema for the XML namespace, e.g. as follows:
<schema . . .>
. . .
<import namespace="http://www.w3.org/XML/1998/namespace"
schemaLocation="http://www.w3.org/2001/xml.xsd"/>
or
<import namespace="http://www.w3.org/XML/1998/namespace"
schemaLocation="http://www.w3.org/2009/01/xml.xsd"/>
Subsequently, qualified reference to any of the attributes or the group defined below will have the desired effect, e.g.
<type . . .>
. . .
<attributeGroup ref="xml:specialAttrs"/>
will define a type which will schema-validate an instance element with any of those attributes. Versioning policy for this schema documentIn keeping with the XML Schema WG's standard versioning policy, this schema document will persist at http://www.w3.org/2009/01/xml.xsd. At the date of issue it can also be found at http://www.w3.org/2001/xml.xsd. The schema document at that URI may however change in the future, in order to remain compatible with the latest version of XML Schema itself, or with the XML namespace itself. In other words, if the XML Schema or XML namespaces change, the version of this document at http://www.w3.org/2001/xml.xsd will change accordingly; the version at http://www.w3.org/2009/01/xml.xsd will not change. Previous dated (and unchanging) versions of this schema document are at: |
| Prefix | Namespace |
|---|---|
| Default namespace | http://www.w3.org/1999/xhtml |
| xml | http://www.w3.org/XML/1998/namespace |
| xs | http://www.w3.org/2001/XMLSchema |
| Name | base |
|---|---|
| Used by (from the same schema document) | Attribute Group specialAttrs |
| Type | xs:anyURI |
| Documentation |
base (as an attribute name)denotes an attribute whose value provides a URI to be used as the base for interpreting any relative URIs in the scope of the element on which it appears; its value is inherited. This name is reserved by virtue of its definition in the XML Base specification. See http://www.w3.org/TR/xmlbase/ for information about this attribute. |
| Name | id |
|---|---|
| Used by (from the same schema document) | Attribute Group specialAttrs |
| Type | xs:ID |
| Documentation |
id (as an attribute name)denotes an attribute whose value should be interpreted as if declared to be of type ID. This name is reserved by virtue of its definition in the xml:id specification. See http://www.w3.org/TR/xml-id/ for information about this attribute. |

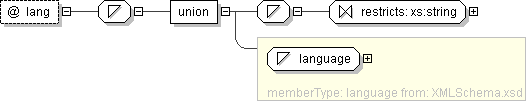

| Name | lang |
|---|---|
| Used by (from the same schema document) | Attribute Group specialAttrs |
| Type | Locally-defined simple type |
| Documentation |
lang (as an attribute name)denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification. NotesAttempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility. See BCP 47 at http://www.rfc-editor.org/rfc/bcp/bcp47.txt and the IANA language subtag registry at http://www.iana.org/assignments/language-subtag-registry for further information. The union allows for the 'un-declaration' of xml:lang with the empty string. |

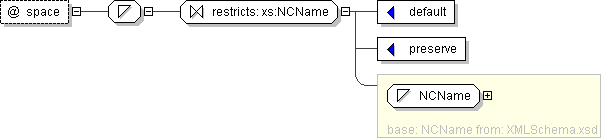

| Name | space |
|---|---|
| Used by (from the same schema document) | Attribute Group specialAttrs |
| Type | Locally-defined simple type |
| Documentation |
space (as an attribute name)denotes an attribute whose value is a keyword indicating what whitespace processing discipline is intended for the content of the element; its value is inherited. This name is reserved by virtue of its definition in the XML specification. |
| Name | specialAttrs |
|---|
| Super-types: | Address < AusAddress (by extension) |
|---|---|
| Sub-types: |
|
| Name | AusAddress |
|---|---|
| Abstract | no |
The XML Instance Representation table above shows the schema component's content as an XML instance.
Abstract (Applies to complex type definitions and element declarations). An abstract element or complex type cannot used to validate an element instance. If there is a reference to an abstract element, only element declarations that can substitute the abstract element can be used to validate the instance. For references to abstract type definitions, only derived types can be used.
All Model Group Child elements can be provided in any order in instances. See: http://www.w3.org/TR/xmlschema-1/#element-all.
Choice Model Group Only one from the list of child elements and model groups can be provided in instances. See: http://www.w3.org/TR/xmlschema-1/#element-choice.
Collapse Whitespace Policy Replace tab, line feed, and carriage return characters with space character (Unicode character 32). Then, collapse contiguous sequences of space characters into single space character, and remove leading and trailing space characters.
Disallowed Substitutions
(Applies to element declarations). If substitution is specified, then substitution group members cannot be used in place of the given element declaration to validate element instances. If derivation methods, e.g. extension, restriction, are specified, then the given element declaration will not validate element instances that have types derived from the element declaration's type using the specified derivation methods. Normally, element instances can override their declaration's type by specifying an xsi:type attribute.
Key Constraint Like Uniqueness Constraint, but additionally requires that the specified value(s) must be provided. See: http://www.w3.org/TR/xmlschema-1/#cIdentity-constraint_Definitions.
Key Reference Constraint Ensures that the specified value(s) must match value(s) from a Key Constraint or Uniqueness Constraint. See: http://www.w3.org/TR/xmlschema-1/#cIdentity-constraint_Definitions.
Model Group Groups together element content, specifying the order in which the element content can occur and the number of times the group of element content may be repeated. See: http://www.w3.org/TR/xmlschema-1/#Model_Groups.
Nillable
(Applies to element declarations). If an element declaration is nillable, instances can use the xsi:nil attribute. The xsi:nil attribute is the boolean attribute, nil, from the http://www.w3.org/2001/XMLSchema-instance namespace. If an element instance has an xsi:nil attribute set to true, it can be left empty, even though its element declaration may have required content.
Notation A notation is used to identify the format of a piece of data. Values of elements and attributes that are of type, NOTATION, must come from the names of declared notations. See: http://www.w3.org/TR/xmlschema-1/#cNotation_Declarations.
Preserve Whitespace Policy Preserve whitespaces exactly as they appear in instances.
Prohibited Derivations (Applies to type definitions). Derivation methods that cannot be used to create sub-types from a given type definition.
Prohibited Substitutions (Applies to complex type definitions). Prevents sub-types that have been derived using the specified derivation methods from validating element instances in place of the given type definition.
Replace Whitespace Policy Replace tab, line feed, and carriage return characters with space character (Unicode character 32).
Sequence Model Group Child elements and model groups must be provided in the specified order in instances. See: http://www.w3.org/TR/xmlschema-1/#element-sequence.
Substitution Group Elements that are members of a substitution group can be used wherever the head element of the substitution group is referenced.
Substitution Group Exclusions (Applies to element declarations). Prohibits element declarations from nominating themselves as being able to substitute a given element declaration, if they have types that are derived from the original element's type using the specified derivation methods.
Target Namespace The target namespace identifies the namespace that components in this schema belongs to. If no target namespace is provided, then the schema components do not belong to any namespace.
Uniqueness Constraint Ensures uniqueness of an element/attribute value, or a combination of values, within a specified scope. See: http://www.w3.org/TR/xmlschema-1/#cIdentity-constraint_Definitions.
